Low-Profile, Easy Install, Advanced Vibration Isolation for SEMs

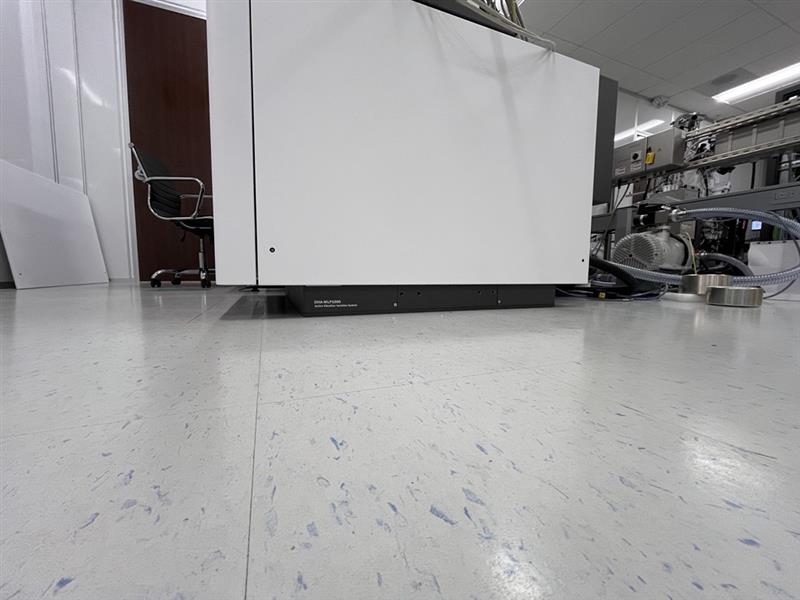

The DVIA-MLP is a customized active vibration isolation system for Thermo Fisher Scientific and other SEM manufacturers. It uses a side-push installation method, avoiding a microscope lift requirement while increasing the microscope height by only a few centimeters. This design maintains ergonomics and compatibility with both OEM and aftermarket enclosures. The DVIA-MLP delivers the same outstanding performance as the MB model.

Download/Product Guide:

Easy to Install

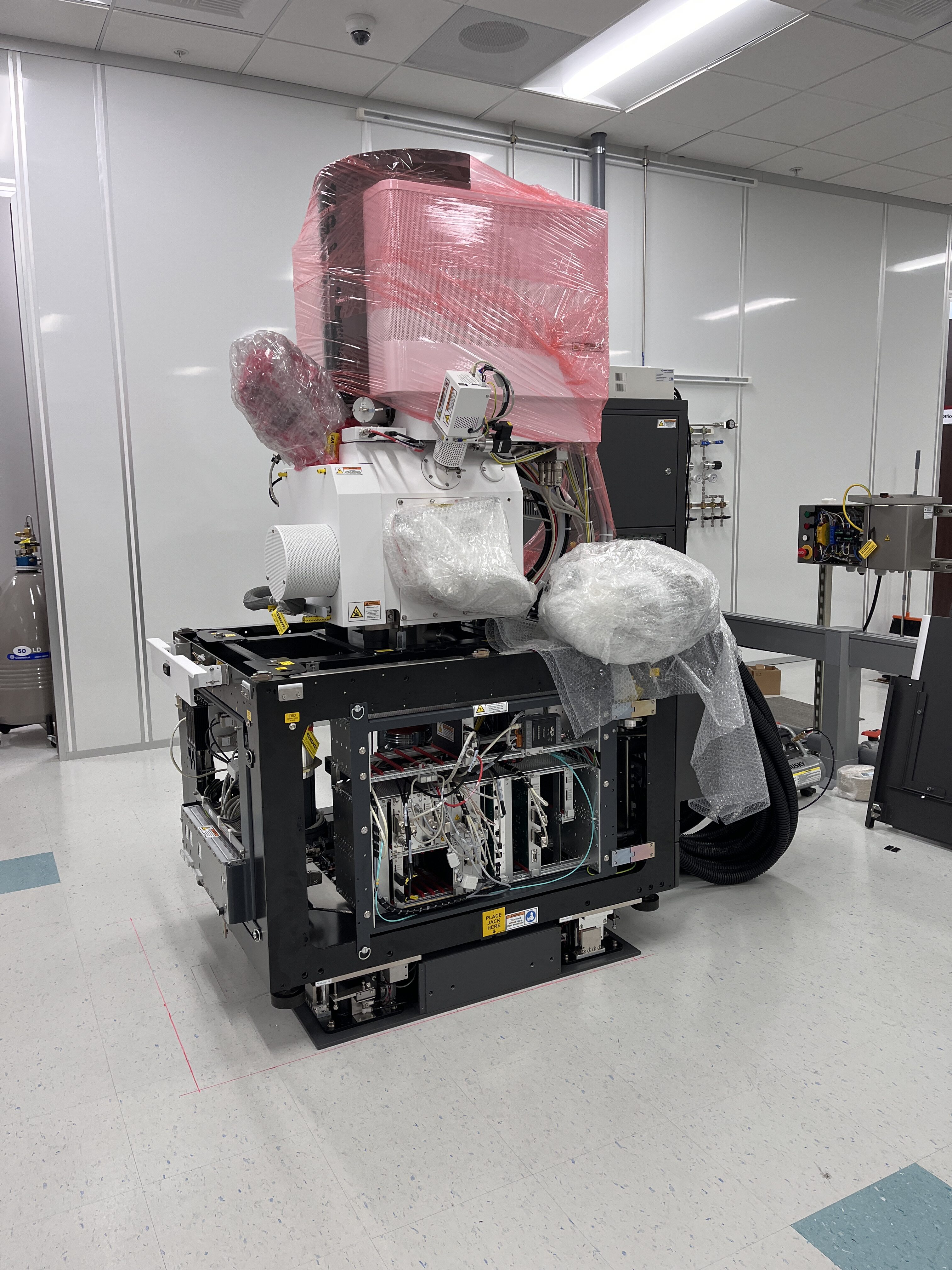

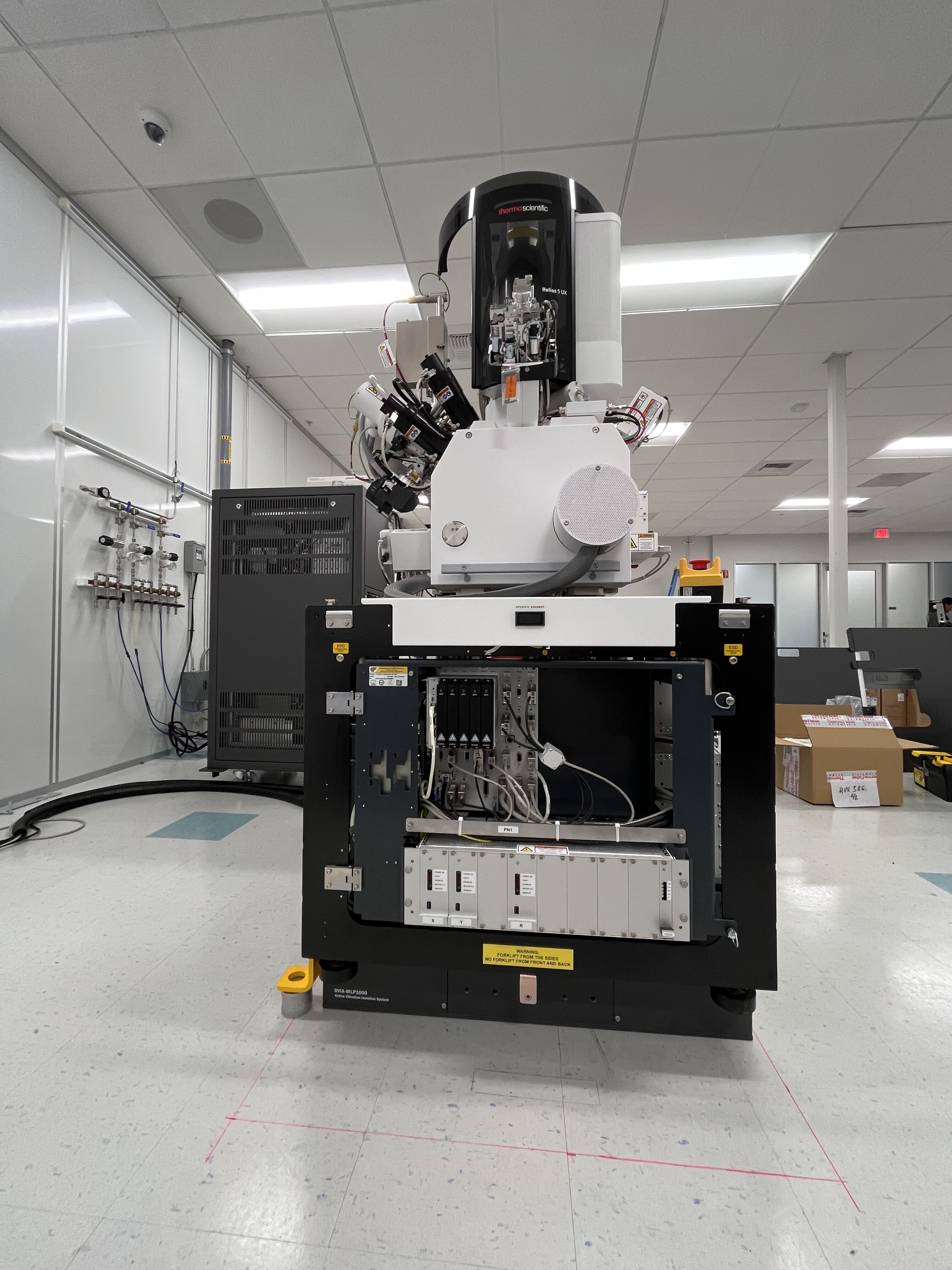

The DVIA-MLP slides directly underneath the microscope and mounts to the instrument frame inside the microscope feet. Using simple blocking and the adjustable microscope feet, the DVIA-MLP slides underneath the microscope using casters, requiring only minimal lift of the microscope itself. The result is a simpler and more cost-effective installation process.

Exceptional Low & High-Frequency Active Vibration Isolation

The DVIA-MLP achieves an impressive 80 - 90% vibration isolation efficiency at 1 Hz, starting its isolation effectiveness from as low as 0.5 Hz, thanks to its state-of-the-art active vibration control algorithms.

Less Sensitive to Variations in Floor Stiffness

The DVIA-MLP series uses a pneumatic passive component and feedforward control for active isolation, making it less dependent on floor stiffness than piezoelectric systems.

Out-of-the-Box Feed Forward Control

Our DVIA isolation systems are equipped with advanced feedforward controls on all models. These controls, utilizing real-time ground sensor measurements, detect and preemptively cancel vibrations before they reach the isolated mass. The dynamic control adapts seamlessly to changing vibration levels and self-optimizes, ensuring consistent outstanding performance.

Turnkey Solutions

VEC delivers turnkey solutions for vibration isolation, magnetic field cancellation, and acoustic abatement for your laboratory. You get expert guidance in product selection, transparent design, on-site installation, and post-sale support for sustained performance with us.

Product Selection

VEC reviews instrument specifications, site testing data, and facility layout to select the product most suitable for your requirements.

Design

VEC provides design documents based on instrument footprint, product details, and project drawings to communicate the proposed solution before purchase. Seismic calculations and stamped structural drawings are available as needed.

Production

VEC ensures production accuracy based on the design and will keep project members abreast of timelines and delivery details.

Stakeholder Coordination

VEC strives to clearly coordinate with the many project stakeholders, including architects, facilities, contractors, and equipment manufacturers.

Installation

VEC engineers will provide on-site installation services to ensure your systems' proper installation and performance. VEC provides installation reports documenting the installation and system performance.

Support

VEC stands behind its products and performance beyond the sale and installation, and engineers are available for support as needed.

Controlling Vibrations in all
Six Degrees of Freedom

Inertial sensors and electromagnetic actuators installed in the DVIA-MLP active vibration isolation systems detect and control vibrations in three translational degrees of motion ( X, Y, and Z), and three rotational degrees of motion (pitch, roll, and yaw).

Compatible Thermo Fisher Scientific SEM Models:

This list is not exclusive, contact us to discuss your specific instrument requirements.

Specifications

Dedication to Quality

All Daeil Systems products are TUV and CE certified.
